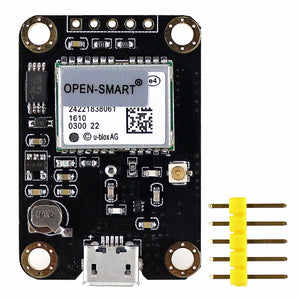

NEO-6M GPS Receiver Module Serial GPS Module with Ceramic Antenna EEPROM for APM2.5 Flight Control OPEN-SMART for Arduino - products that work with official Arduino boards

Note: Due to logistics reasons, the board does not includes battery.??/span>
?ŠManual: Click here to open
??br>Description:



BLOX 6M GPS module, with high sensitivity, low power consumption, miniaturization, and its extremely high tracking sensitivity characteristics, greatly expanded its coverage of positioning. In the area that the GPS receiver can not locate, such as narrow urban sky, dense Jungle environment, UBLOX 6M can achieve high-precision positioning.

Its high sensitivity, small static drift, low power consumption, and compact size make it suitable for applications in vehicles, handheld devices such as PDAs, vehicle monitoring, mobile phones, video cameras, and other mobile positioning systems, and it is the best choice for GPS applications.



Features:



- Operating frequency: L1 (1575.42 +/- 10MHz)

- Operating voltage: 3.3 - 5.5V

- Operating current: normal mode is 50mA, the power-saving mode is 30mA

- Communication interface: TTL serial port, micro USB interface (can be connected to a computer to debug)

- Serial port baud rate: 9600bps

- Communication format: 8N1

- Interface logic voltage: 3.3V

- On-board antenna: ceramic antenna, should be used when facing the sky

- External antenna interface: IPX

Package includes:

1 x GPS Receiver Module

1 x 5P Pin Header
