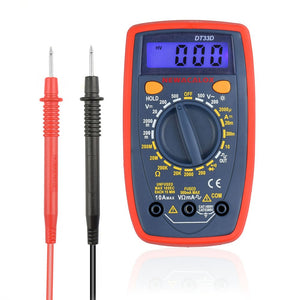

NEWACALOX LCD Display Digital Multimeter Back Light AC/DC Ammeter Voltmeter Ohm Portable Clamp Meters Capacitance Tester Tool
Tax included.
ï»?/span>Features:
1.Accurately measures current, voltage, resistance, and so on.
2.Back light LCD with large digits for visibility in dimly lit areas
3.Includes 2 pieces test leads, protective case and bag
4.Portable - compact, easy to carry,can be used at anytime, anywhere
5.Displays results quickly with 2-3 readings per second update speed
6.With a bracket, you can erect an angle to facilitate reading
7.100% brand new and high quality.
8.Easy to operate, accurate readings, full-featured,use battery powered.
Specifications:
|
LCD size |
49*17mm |
|
|
Sampling speed |
2 times per second. |
|
|
Over-load indication |
????is displayed |
|
|
Operating Environment |
0 - 40, at < 80%RH |
|
|
Storage Environment: |
-10-50,at < 85%RH |
|
|
Power |
9V NEDA 1604 or 6F22 |
|
|
Product size |
130*73*37mm |
|
|
Product net weight |
145g |
|
|
Measurement ranges |
Accuracy |
|
|
DC Voltage |
200mV |
±(0.5% of rdg+3D) |
|
2000mV/20V/200V |
±(0.8% of rdg+5D) |
|
|
500V |
±(1% of rdg+5D) |
|
|
AC Voltage |
200V/500V |
±(2% of rdg+10D) |
|
DC Current |
200μA/2000μA/20mA |
±(1.8% of rdg+2D) |
|
200mA |
±(2% of rdg+2D) |
|
|
10A |
±(2% of rdg+10D) |
|
|
Resistance |
200Ω |
±(1% of rdg+10D) |
|
2000Ω/20KΩ/200KΩ |
±(1% of rdg+4D) |
|
|
20MΩ |
±(1% of rdg+10D) |
|
|
200MΩ |
±(5%*(rdg-10)+10dgts) |
|
Package includes:
1 x Digital Multimeter
2 x Test Leads ( length: 79CM)
1 x Protective case
1 x Bag
1 x English User's Manual
Details Pictures:
