NRF52810 bluetooth Module BLE 4.2 Low Power Bluetooth External Antenna IPEX Support Multi-Protocol
Tax included.
>>>Manual: Click here to open<<<

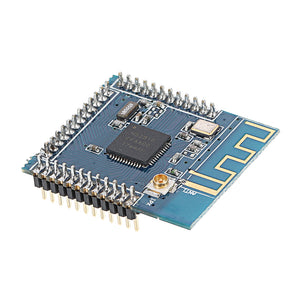

Module Introduction:
XL52810-D01 Sampling NORDIC latest generation Bluetooth 4.2 chip NRF52810 design and manufacture, the module comes with onboard antenna and supports external IPEX antenna interface,
Therefore, the IO chip leads. A new generation of XL52832 joined a lot of new features. Such as the Cortex-M4F core, it has more powerful computing power and floating-point arithmetic.
nrf52832 can support multiple protocols, Bluetooth Smart (Low Energy), ANT / ANT + and proprietary 2.4GHz multiple protocols, so you can connect nRF51, nRF24AP and nRF24L like products.
Specifications:
Frequency range: 2360-2483MHZ
Output power: 4dBm
Receiver sensitivity: -96 dBm Bluetooth
Modulation method: GFSK
Kernel: Cortex-M4F
Module Size: 21 * 25mm Interface spacing 1.27mm
Emission current: 5.3mA@OdBm
Receiving current: 5.3mA@1MBPS
Deep sleep: 0.4uA
RAM / FLASH: 64k / 512k
Package Inlcuded:
1 x NRF52832 bluetooth Module BLE 4.2
