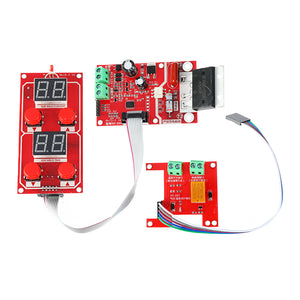

NY-D07 40A Transformer Control Board of Pneumatic Spot Welding Machine Can Be Connected to Solenoid Valve with Linkage Welding

NY-D07 40A Transformer Control Board of Pneumatic Spot Welding Machine Can Be Connected to Solenoid Valve with Linkage Welding

  • Save R 1,009.95
Tax included.
SKU:

Size Conversion

Inches

Centimeters

Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.

Instructions for use:

Press the time + time - button at the same time on the operation panel to enter the parameter settings.
The simultaneous status indicator is on
parameter settings
Parameter selection via the current setting button,
Preload: Pt
Interval: Et
Welding Times Cn
Select the corresponding parameter and adjust the parameter by time button
Preloading range: 01-99 Interval range: 01-99 Welding times 01-05

Save parameters:

Press the current + current - button at the same time to save the parameters
With temperature protection, With switch interface
Can connect DC24V/220V solenoid valve
Automatic welding times can be set up (that is food switch step , then times operation of machine)

Package includes:

1 x Control Board
