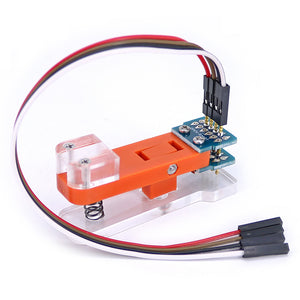

OPEN-SMART UART I2C OLED Module Test Tool PCB Test Fixture 1x4P 2.54MM Pitch Gold-plated Probe

Introduction:



This is a test fixture dedicated to module testing. It is suitable for modules and boards without soldering pin headers.



Feature:



- Great to test OPEN-SMART I2C OLED, I2C ADXL345 Accelerometer and other 4pin modules.

- Number of Pins: 1X4P

- Pin pitch: 2.54mm

- Probe head type: P75-E3 (cone), gold-plated, durable

- Probe head applicable pad: through pad, surface pad

- Probe receptacle type: R75-3W

- Probe receptacle tail specifications: 0.64X0.64MM, apply to DuPont cable

- Wire slot specifications: width 6mm, height 6mm (can pass through 12 DuPont line)

- Operating current: Each pin 1A (max)

- Operating voltage: 30V (max)

Package includes:

1 x Test Fixture 1X4P

1 x 4P Cable
