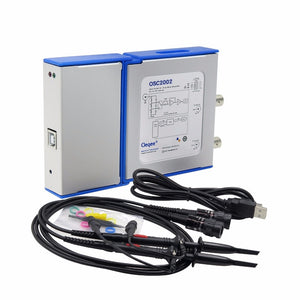

OSC2002 PC Virtual Digital Handheld Oscilloscope 2 Channel Bandwidth 50Mhz Sampling Data 1G with Probe USB cable

Model

OSC2002

Connector type :

2 channels with BNC sockets, 20 mm spacing.

Vertical resolution:

8 Bit.

Maximum sampling rate (S/s):

1 G

Bandwidth ( −3 dB):

50 MHz

Input coupling:

AC/DC.

Input characteristics:

1M??|| 25pF.

PC OS requirements:

Windows XP, Win 7, Win 8.1, Win10 (32 bit and 64 bit).

Over voltage protection:

±60.0v (x1), ±600.0v (x10). (DC + AC peak)

Triggering type:

Rising/falling edge according to trigger level.

Triggering mode:

None, auto, normal, single.

Pre-trigger capture:

50% of capture size.

Automatic measurements:

Maximum, minimum, average, RMS, frequency, period, positive pulse width, negative pulse width, duty cycle, rise time, peak-to-peak value.

Samples Interpolation:

Linear or sin(x)/x.

FFT:

1024 points.

FFT window function:

Rectangle, Hanning, Hamming, Blackman.

Math:

A+B, A-B, AxB, X-Y.

Acquisition Modes:

High Resolution mode / Peak-detect mode.

Waveform recording and playback:

File format :

*.oscxxx.

Record depth:

50 ~ 450 frames.

File size:

6 MB ~ 20GB.

Data logger Sampling Interval:

1 second to 1 hour.

Data logger Record Duration:

1 minute ~ 72 hours.
