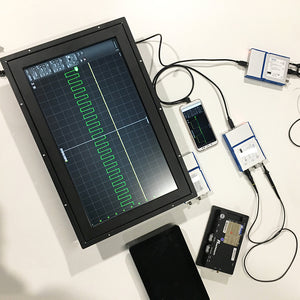

OSC802 Virtual Oscilloscope USB PC Oscilloscope OSC802 80M Sampling 25M Bandwidth Dual Channel

OSC802 Virtual Oscilloscope USB PC Oscilloscope OSC802 80M Sampling 25M Bandwidth Dual Channel

  • Save R 6,500.80
Tax included.
SKU:
Features:

Small size for easy carrying, 153 (long) x 93 (wide) x 23 (height) mm. Suitable for laptops, production line maintenance adjustments, easy to use for business trips
More than 20 automatic measurement functions FFT spectrum analysis
Provide GPIO interface Provide software interface protocol for secondary development of customers.
The USB 2.0 interface draws power directly from the host and does not require an additional power supply.
The oscilloscope and data logger PC software are completely free.
Achieve PC large screen display and PC desktop oscilloscope similar interface, easy to get started
Support multiple serial protocol decoding.
Software supports Windows XP, Win 7, Win 8.1, Win10 (32 bit and 64 bit). Voice Chinese English can be switched

APPLICATIONS:

General and precision testing.
Embedded in teaching equipment or industrial test systems.
Power supply ripple and noise detection.
Multi-sensor system and serial bus decoding.
Analog data acquisition and secondary development of digital IO control projects.
Voltage/current data recording analysis of solar energy systems and lighting systems.
A troubleshooting tool for field maintenance engineers.
DIY enthusiasts and basic tools for makers.

Software download link:

http://bbs.lotoins.com/support.html

Software User's Manual:

Click to view the software manual

Specification:

Model: OSC802
Detail: Support Windows XP, Win 7, Win 8.1, Win10 (32 bit and 64 bit).
Input channels: 2
Maximum sampling rate (S/s): 80M
Bandwidth (−3 dB): 25M Hz
FFT: √
Data logger: √
I/O extension: X
Serial bus decoding: √
Hardware trigger: √
Ext trigger  support: √
Signal generator module  support: X
Logic analyzer module : X
Android Phone/ Tablet support X
l  Connector type : 2 channels with BNC sockets, 20 mm spacing.
l  Vertical resolution: 8 Bit.
l  Maximum sampling rate (S/s): 80M
l  Bandwidth ( −3 dB): 25MHz
l  Input coupling: AC/DC.
l  Input characteristics: 1M??|| 25pF.
l  PC OS requirements: Windows XP, Win 7, Win 8.1, Win10 (32 bit and 64 bit).
l  Overvoltage protection: ±60.0v (x1), ±600.0v (x10). (DC + AC peak)
l  Triggering type: Rising/falling edge according to trigger level.
l  Triggering mode: None, auto, normal, single.
l  pre-trigger capture: 50% of capture size.
l  Automatic measurements: Maximum, minimum, average, RMS, frequency, period, positive pulse width, negative pulse width, duty cycle, rise time, peak-to-peak value, Deep measurement.
l  Samples Interpolation: Linear or sin(x)/x.
l  FFT: 1024 ~ 16K points.
l  FFT window function: Rectangle, Hanning, Hamming, Blackman.
l  Math: A+B, A-B, AxB, X-Y.
l  Acquisition Modes: Normal mode / High Resolution mode / Peak detect mode.
l  Waveform recording File format :
and playback: Record depth:
?� File size:
l  Data logger Sampling Interval: 1 second to 1 hour.
l  Data logger Record Duration: 1 minute ~ 72 hours.
l  Temperature range: Operating: 0 °C to 40 °C (20 °C to 30 °C for stated accuracy). Storage: −20 °C to +60 °C.
l  Reference Output: 1K Hz, 1.5 V square wave output with 50% duty cycle.
l  Size: 153(L) x 93(W) x 23(H) mm.
l  Languages (full support): English, Chinese (simplified).
l  Compliance: CE, FCC.
l  Net weight:
l  Input sensitivity (10 vertical divisions):
l  Input ranges( probe x1):
l  Time base selection (10 horizontal divisions):
l  Typical noise (peak to peak voltage): 20 mv/div
50 mv/div
100 mv/div


Package includes:

1 X Oscilloscope host device
1 X USB cable
2 X Passive voltage probe,60 MHz x1/x10
