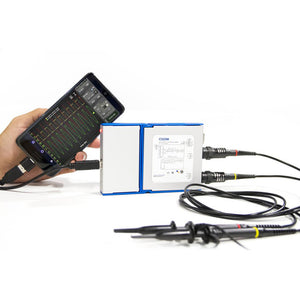

OSCA02L(OSCA02+Logic Analyzer) 35MHz 2 CH Oscilloscope 100M/s Sampling Rate Hand-held Portable USB PC Virtual Digital Oscilloscope
Tax included.
Features:
Smalsize for easy carrying, 153 (long) x 93 (wide) x 23 (height) mm. Suitable for laptops, production line maintenance adjustments, easy to use for business trips
More than 20 kinds of automatic measurement functions FFT spectrum analysis
Provide GPIO interface Provide software interface protocofor secondary development of customers.
The USB 2.0 interface draws power directly from the host without the need for additionapower.
The oscilloscope and data logger PC software is completely free.
Realize PC large screen display and PC desktop oscilloscope similar interface, easy to get started
Support multiple seriaprotocodecoding.
TTlevewith 4-channelogic analyzer function
Software supports Windows XP, Win 7, Win 8.1, Win10 (32 bit and 64 bit). Voice Chinese English can be switched
APPLICATIONS:
General and precision testing.
Embedded in teaching equipment or industrial test systems.
Power ripple and noise detection.
Multi-sensor system and serial bus decoding.
Analog data acquisition and secondary development applications for digital IO control projects.
Analysis of voltage/current data records for solar systems and lighting systems.
On-site maintenance engineer's troubleshooting tool.
DIY enthusiasts and basic tools for makers.
Software download link:
http://bbs.lotoins.com/support.html
Software User's Manual:
Click to view the software manual
Specification:
AT A GLANCE:
Package includes:
http://bbs.lotoins.com/support.html
Software User's Manual:
Click to view the software manual
Specification:
| Connector type : | 2 channels with BNC sockets, 20 mm spacing. | |
| Verticaresolution: | 8 Bit. | |
| Maximum sampling rate (S/s): | 100M | |
| Bandwidth ( −3 dB): | 35MHz | |
| Input coupling: | AC/DC. | |
| Input characteristics: | 1M??|| 25pF. | |
| PC OS requirements: | Windows XP, Win 7, Win 8.1, Win10 (32 bit and 64 bit). | |
| Overvoltage protection: | ±60.0v (x1), ±600.0v (x10). (DC + AC peak) | |
| Triggering type: | Rising/falling edge according to trigger level. | |
| Triggering mode: | None, auto, normal, single. | |
| pre-trigger capture: | 50% of capture size. | |
| Automatic measurements: | Maximum, minimum, average, RMS, frequency, period, positive pulse width, negative pulse width, duty cycle, rise time, peak-to-peak value. | |
| Deep measurement: | With this function, the waveform jump points are automatically numbered and marked, and the time difference between the two adjacent numbers is automatically displayed. | |
| Samples Interpolation: | Linear or sin(x)/x. | |
| FFT: | 1024 ~ 16K points. | |
| FFT window function: | Rectangle, Hanning, Hamming, Blackman. | |
| Math: | A+B, A-B, AxB, X-Y. | |
| Acquisition Modes: | Normamode / High Resolution mode / Peak detect mode. | |
| Waveform recording and playback: |
File format : | *.oscxxx. |
| Record depth: | 50 ~ 450 frames. | |
| File size: | 6 MB ~ 20GB. | |
| Comparison reference | Support waveform image import and real-time waveform comparison reference. It can import waveform pictures, set gray leveand transparency, move up and down, and zoom in and out horizontally and longitudinally. | |
| Data logger Sampling Interval: | 1 second to 1 hour. | |
| Data logger Record Duration: | 1 minute ~ 72 hours. | |
| Temperature range: | Operating: 0 °C to 40 °C (20 °C to 30 °C for stated accuracy). Storage: −20 °C to +60 °C. | |
| Reference Output: | 1K Hz, 1.5 V square wave output with 50% duty cycle. | |
| Size: | 153(L) x 93(W) x 23(H) mm. | |
| Languages (fulsupport): | English, Chinese (simplified). | |
| Compliance: | CE, FCC. | |
| Input sensitivity (10 vertical | 50 mV/div to 2 V/div. | |
AT A GLANCE:
| Model: | OSCA02 | OSCA02L |
| Detail: | Support Windows XP, Win 7, Win 8.1, Win10 (32 bit and 64 bit). | OSC2002 + 4 channels Logic analyzer. Support Windows XP, Win 7, Win 8.1, Win10 (32 bit and 64 bit). |
| Input channels: | 2 | 2 |
| Maximum sampling rate (S/s): | 100M | 100M |
| Bandwidth (−3 dB): | 35M Hz | 35M Hz |
| FFT: | √ | √ |
| Data logger: | √ | √ |
| I/O extension: | x | x |
| Seriabus decoding: | √ | √ |
| Hardware trigger: | √ | √ |
| Ext trigger support: | √ | √ |
| Signagenerator module support: | x | x |
| Logic analyzer module : | x | √ |
| Android Phone/ Tablet support | x | x |
Package includes:
1 X Oscilloscope host device
1 X USB cable
2 X Passive voltage probe,60 MHz x1/x10
1 X 4 Channel logic analyzer function TTL level module
Details pictures:
1 X 4 Channel logic analyzer function TTL level module
