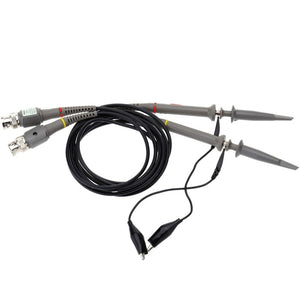

P6020 High Precision X1/X10 20MHz Oscilloscope Probe Alligator Clip
Tax included.
Description:
This oscilloscope with several useful accessories is designed to make measurement process simple. It has compact size and stable performance.
This oscilloscope with several useful accessories is designed to make measurement process simple. It has compact size and stable performance.
Features:
Compact size, several functions combined in one, this probe is convenient to use.
Adjustable probe attenuation, you can choose 1X or 10X by sliding the switch.
Detachable hook tip, the hook is well protected by the plastic case.
Locating sleeves ensure the stability and reliability of the tip exposed to the test point.
Marker rings in different colors help to identify different channels.
Great choice for oscilloscope probe.
Specifications:
Band Width: 20MHz
Rise Time: 27.5ns
Attenuation Ratio: 1X / 10X
Input Resistance: (1M/10M)2%
Input Capacitance: 1X: 70pF-120pF 10X: 14-18pF
Maximum Input: 1X: 200 Working Voltage(Vp-p) 10: 600 Working Voltage(Vp-p)
Compensation Range: 15-45pF
Operating Temperature: 0-50C
Operating Humidity: 0-80%RH
Item Length: 14cm
Item Weight(2pc): 98g / 3.5oz
Package Size: 22 x 14 x 1cm / 8.7 x 5.5 x 0.4in
Package Weight: 127g / 4.5oz
Package included:
1 x Pair of Test Probes
1 x Bag of Accessories
1 x User Manual
Detail Pictures:
Detail Pictures:
