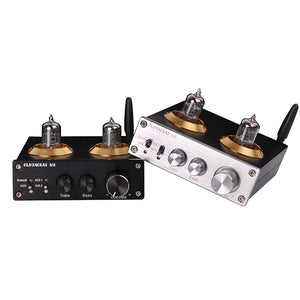

PJ.MIAOLAI M8 6J8 Tube bluetooth 2x50W Amplifier Integrated ES9023 DAC
Tax included.
Features:
M8 Hifi tube bluetooth amplifier, The amplifier is based on TPA3116 amplifier chip.The TPA3116 is D type amplifier IC.The max 1.2MHZ modulation frequency, large power output distortion is less than 0.1%(10W).the max support 50W+50W dual channel output
Thick gold plated input&output connectors, There are mulitple ways audio inputs, Two toggle switches to select audio input source
6J1 military grade electron tube, aluminum large radiation fin
Build-in bluetooth audio module based on CSRA64215 chip, support A2DP, AVRCP, HFP, TWS, AAC, I2S
4M SPI FLASH memory chip, external high gain detachable antenna, signal lossless transmission
Inner 2 pcs relayer and high presion customed crystal oscillator, switch on protection function
ESS9023 bluetooth decoder for bluetooth input, 24 bit stereo audio digital analog conversion chip(DAC).Hyperstream structure, 112dB dynamic range
M8 audio signal input port can connect computer, CD, lossless music player.can connect computer, tablet PC through bluetooth
Audio output port can connect desktop passive speaker, bookshelf speaker(passive bookshelf speaker below 4 ohm 150W, 8ohm 100W)
Audio input port: RCA input, 3.5 stereo input, bluetooth input
Voltage input: 19V/4.7A
Rated output power: 8ohm 2x30W, 4ohm 2x50W
SNR: 99dB
Frequency: 50Hz-60Hz
Channel: 2 channel
Output power: 2x50W
Weight: 0.8kg
M8 size: 16 x 11.5 x 7(L x W x H)
Package Included:
1 x PJ.MIAOLAI M8 Amplifier
1 x Power Adapter
2 x Electron Tube
1 x bluetooth Antenna
