PJ.MIAOLAI T9 HIFI SP3306AL DAC Amplifier Support USB MP3 Coaxial Optical Fiber Digital Signal Output
Tax included.
Features:
Main chip is SP3306AL, can play the APE, FLAC ,etc. format music, the real nondestructive quality output
A digital optical signal output, digital coaxial output signal, a set of simulated RCA signal output, can be connected with a fiber optic signal, coaxial signal input audio equipment
A group of analog signal input, also can convert digital signals (optical fiber, coaxial) output
Can be used as an analog signal input digital signal output of the decoder used DAC, multi-usage, usb flash drive input and analog signal input can remote control switch freely
Support lossy compression format MP3 (MPEG1/2/2.5Layer1/2/3)
WMA (7.0/8.0/9.0 WMA) supported by lossy compression format
Supports lossless compression format APE 3.95 or more versions of Fast (C1000), Normsl (C2000), High (C3000)
Support lossless compression format FLAC
Support WAV IMA format (ADPCM INTEL, ADPCM PCM,)
Support CUE file player (ANSI format)
Support 32G USB-Disk storage, format cannot be NTFS, must be the FAT32 format
Hardware audio processing EQ1. EQ2
With single cycle and sequence playback function
Playback mode: USB
Play format: WAV FLAC MP3
Output: 6.3mm headphone jack, RCA, coaxial, optical fiber
Input: USB, RCA
The two major parameters
Distortion: THD+N: 0.004% (RL > 10 K)
Distortion: THD+N: 0.020% (RL = 32)
Signal to noise ratio: dB >99
Dynamic range: dB >99
Voltage input DC:5V
T9 size: 13.5 x 9 x 4 (CM)
Key instructions:
4 buttons, respectively, ST standby key, S sound source key switch, volume +. key.
Remote control buttons:
The AUX analog signal input keys
Input key USB flash drive
MODE of two sets of audio switch button
RPT single cycle and sequence switch button
Two sound key EQ.
Note:
The following format can not be played normally
The following format can not be played normally
Encoding as "Higf Extra" APE.
The bit rate over WAV. 4608kpbs
DTS encoding APE/WAV.
AAC/OGG/MPC format.
Damaged music format

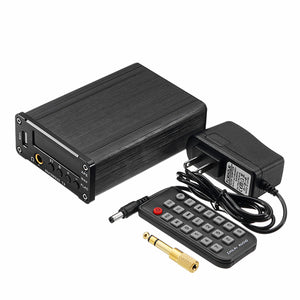

Package Included:
1 x PJ.MIAOLAI T9 HIFI DAC
1 x Remote Control
1 x Headphone Connection Plug
1 x Power Adapter
