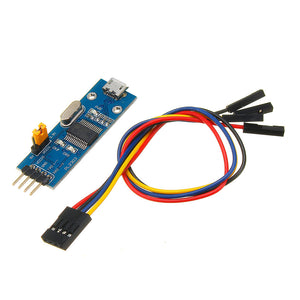

PL2303 USB To UART TTL Converter Mini Board LED TXD RXD PWR 3.3V/5V Output Serial Module
Tax included.
Specifications:
1.Model:PL2303
2.Name:USB-to-UART serial convert board
3.Using PL2303TA (compatible PL2303HXA)
4.Support windows XP / 7/8 / 8.1 / 10 / ...
5.Supports 3 power modes: 5V External power supply; 3.3V External power supply; externally powered (requires 3.3V-5V)
6.Three LED: TXD LED, RXD LED, POWER LED
7.Size:50*17mm
Instructions:( to access the MCU as an example)
VCCIO: Output 3.3V or 5V (powered by USB module skip, shall jumper 3.3V or 5V)
GND: connect to GND connection
TXD: connect to MCU.RX (Signal Flow: MCU.RX << PL2303 << PC.TX)
RXD: connect to MCU.TX (Signal Flow: MCU.TX >> PL2303 >> PC.RX)
Note: This is USB to TTL level module. Do not directly connected to RS232 level, it would burn module.
Pacakge Included:
1 x PL2303 USB UART TTL Convert Mini Board
1.Model:PL2303
2.Name:USB-to-UART serial convert board
3.Using PL2303TA (compatible PL2303HXA)
4.Support windows XP / 7/8 / 8.1 / 10 / ...
5.Supports 3 power modes: 5V External power supply; 3.3V External power supply; externally powered (requires 3.3V-5V)
6.Three LED: TXD LED, RXD LED, POWER LED
7.Size:50*17mm
Instructions:( to access the MCU as an example)
VCCIO: Output 3.3V or 5V (powered by USB module skip, shall jumper 3.3V or 5V)
GND: connect to GND connection
TXD: connect to MCU.RX (Signal Flow: MCU.RX << PL2303 << PC.TX)
RXD: connect to MCU.TX (Signal Flow: MCU.TX >> PL2303 >> PC.RX)
Note: This is USB to TTL level module. Do not directly connected to RS232 level, it would burn module.
Pacakge Included:
1 x PL2303 USB UART TTL Convert Mini Board
