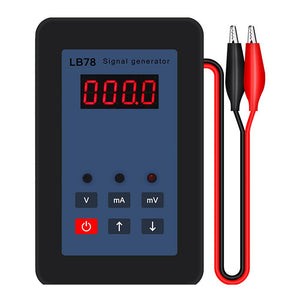

Portable 4-20mA Signal Generator 0-20mA 0-110mV Calibrator LB78 High Precision mA mV Signal Current
Tax included.
Features:
- High accuracy 0.01V, 0.01mA, 0.1mV, lost cost.
- User-friendly key layout, all functions have independent corresponding keys.
- Fast response and zer'o delay in operation.
- Low power dissipation and long stand-by time.
- Refined small pocket size design, dimension: 108x66x20mm (LxWxH).
- With embedded 2000mAH rechargeable battery, no need external power supply.
- Built-in one-time quick-break fuse can avoid instrument damages caused by improper connecting electric supply with 110V or 220V.
- DA, reference voltage and operational amplifier adopt stable qualified precision chips to improve temperature stability and long-term performance.
Specifications:
Package includes:
1 x Signal Generator
Detail pictures:
Specifications:
Accuracy:0.01mA, 0.01V, 0.1mV
Output:0-110mV, 0-10V, 4-20mA, 24V
Power Supply:Embedded re-chargeable battery
Size:108x66x20mm (LxWxH)
Highlight:Small pocket size, high precision
Power recharging:USB port
Color:Black and Blue
Parameters:
Parameters:
| Function | OUT UNIT | Set Range | Set Step | Error |
| DC.V | V | 0-11.00V | 0.01/0.1/1 | Max:0.01V |
| DC.mV | mV | 0-110.0mV | 0.1/1/10 | Max:0.1mV |
| DC.Current | mA | 0-24.00mA | 0.01/0.1/1/4 | Max:0.01mA |
| 24V | 24V mA |
0-24.0mA | None | Max:0.2mA |
Package includes:
1 x Signal Generator
Detail pictures:
