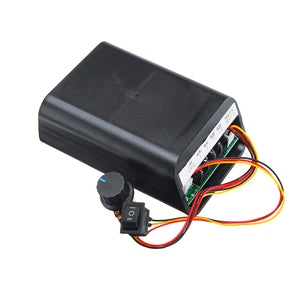

PWM DC Motor Speed Controller 12V24V36V48V Brush Motor Positive Reversing Module Stopping Controller

Feature:



(1) Operating voltage: DC9V-50V Wide operating voltage range

(2) Control power: 0.01-2000W (maximum rated current 40A, long-time working current up to 20A)

(3) Quiescent current: 0.020A (standby state)

(4) PWM duty cycle: 0%-100%

(5) PWM frequency: 25khz

(6) Control voltage: potentiometer

(7) Direction control: Ship type switch, position I is forward, position II is reverse, position 0 is brake.

(8) Circuit board dimensions: 100mm x 76mm x 28mm

Package includes:

1 x Motor controller
