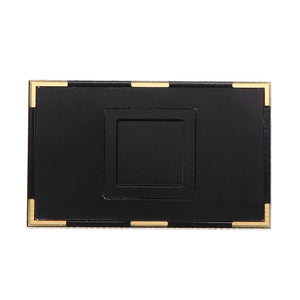

R302 Fingerprint Reader Access Control Recognition Device Module Fingerprint Sensor Scanner with 150 Finger Capacity

R302 Fingerprint Reader Access Control Recognition Device Module Fingerprint Sensor Scanner with 150 Finger Capacity

  • Save R 744.03
Tax included.
SKU:

Features:

1. Integrated image collecting and algorithm chip together, ALL-in-One
2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate
3. The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box
4.Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on. We don't provide technical support for development.
5. Provide User Manual

Specifications:

Model
R302
Type
Capacitive Fingerprint Module
Interface
USB,UART(RS232 TTL)
Resolution
508 DPI
Voltage
DC 4.2-6V
Fingerprint Capacity
120
Sensing array
160*160 pixel
Fingerprint module size
33.4*20.4*1.0(mm)
Effective collection area
8 * 8 (mm)
Scanning Speed
< 0.2 second
Verification Speed
< 0.3 second
Matching Method
1:1; 1:N
FRR
??.1%
FAR
??.001%
Work environment
-20C ---50C
Work Humidity
10-85%
Anti-static capacity
15KV
Abrasive resistance intensity
1 million times
Communications baud rate (UART):
(9600 ? N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

Package Incldued:

1 x R302 Fingerprint Reader Access Control Recognition Device Module
1 x Connect Cable

Model R300 R301T R302 R303 R303T R304 R306 R311 R305 R307 R308
Size 33.4*20.4*1.0mm 33.4*20.4*1.0mm 33.4*20.4*1.0mm 33.4*20.4*1.0mm 33.4*20.4*1.0mm 33.4*20.4*1.0mm 33.4*20.4*1.0mm 35*23*1.5mm 55*32*21.5mm 52*20*22mm 55.5*20.5*21mm
Interface UART USB/UART USB/UART USB/UART USB/UART USB/UART USB/UART USB/UART USB/UART USB/UART UART
Vottage DC4.2-6V DC4.2-6V DC4.2-6V DC4.2-6V DC4.2-6V DC4.2-6V DC4.2-6V DC4.2-6V DC4.2-6V DC4.2-6V DC4.4-6V
Working Current 30mA 40mA 42mA 40mA 40mA 40mA 40mA 40mA 110mA 50mA 110mA
Fingerprint Capacity 200 3000 120 1000 1000 1000 1000 1000 980 1000 500
Sensing Array(pixel) 160*160  192*192 160*160 208*288 208*288 192*256 208*288 256*360 300000 300000 300000
Resolutin(DPI) 508 508 508 508 508 508 363 508 508 508 508
Effective collection area(mm) 12*12 10*10 8*8 11*15 11*15 11*15 11*15 12.8*18. 15*18 11*15 11*15
Fingerprint touch function YES YES YES NO YES NO NO YES NO YES YES
Connector MX 1.25mm 6pin MX 1.25mm 6pin MX 1.25mm 6pin MX 1.25mm 4pin MX 1.25mm 6pin MX 1.25mm 4pin MX 1.25mm 4pin MX 1.25mm 6pin MX 1.25mm 4pin MX 1.25mm 6pin
