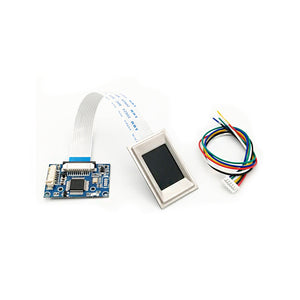

R311 Big Size Sensor Area Capacitive Fingerprint Access Control Module Scanner Fingerprint Reader

R311 Big Size Sensor Area Capacitive Fingerprint Access Control Module Scanner Fingerprint Reader

  • Save R 2,863.50
Tax included.
SKU:

Features:

·Communication interface : USB and UART
·1:N Identification (One-to-Many)
·1:1 Verification (One-to-One)
·High speed fingerprint identification algorithm engine
·Self study function
·Fingerprint feature data read/write functions
·Get Feature Data of Captured fingerprint and Verify/Identify Downloaded Feature with Captured
·Fingerprint Identify Downloaded Feature with Captured fingerprint
·Security Level setting
·Able to set BaudRate/ Device ID/Device Password
·Operating system:Windows 98, Me, NT4.0, 2000, XP,WIN 7 or Android
·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual

Specifications:

Model
R311
Type
Capacitive Fingerprint Module
Interface
UART(TTL),USB
Resolution
508 DPI
Voltage
DC 4.2-6V
Fingerprint Capacity
1000
Sensing array
256*360 pixel
Fingerprint module size
35.0*23.0*1.5(mm)
Effective collection area
12.8*18.0 (mm)
Scanning Speed
< 0.2 second
Verification Speed
< 0.3 second
Matching Method
1:1; 1:N
FRR
??.1%
FAR
??.0001%
Work environment
-20C ---50C
Work Humidity
10-85%
Anti-static capacity
15KV
Abrasive resistance intensity
1 million times
Communications baud rate (UART)
(9600 ? N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

Package Incldued:

1 x R311 Big Size Sensor Area Capacitive Fingerprint Access Control Module
1 x Connect Cable

Model R300 R301T R302 R303 R303T R304 R306 R311 R305 R307 R308
Size 33.4*20.4*1.0mm 33.4*20.4*1.0mm 33.4*20.4*1.0mm 33.4*20.4*1.0mm 33.4*20.4*1.0mm 33.4*20.4*1.0mm 33.4*20.4*1.0mm 35*23*1.5mm 55*32*21.5mm 52*20*22mm 55.5*20.5*21mm
Interface UART USB/UART USB/UART USB/UART USB/UART USB/UART USB/UART USB/UART USB/UART USB/UART UART
Vottage DC4.2-6V DC4.2-6V DC4.2-6V DC4.2-6V DC4.2-6V DC4.2-6V DC4.2-6V DC4.2-6V DC4.2-6V DC4.2-6V DC4.4-6V
Working Current 30mA 40mA 42mA 40mA 40mA 40mA 40mA 40mA 110mA 50mA 110mA
Fingerprint Capacity 200 3000 120 1000 1000 1000 1000 1000 980 1000 500
Sensing Array(pixel) 160*160  192*192 160*160 208*288 208*288 192*256 208*288 256*360 300000 300000 300000
Resolutin(DPI) 508 508 508 508 508 508 363 508 508 508 508
Effective collection area(mm) 12*12 10*10 8*8 11*15 11*15 11*15 11*15 12.8*18. 15*18 11*15 11*15
Fingerprint touch function YES YES YES NO YES NO NO YES NO YES YES
Connector MX 1.25mm 6pin MX 1.25mm 6pin MX 1.25mm 6pin MX 1.25mm 4pin MX 1.25mm 6pin MX 1.25mm 4pin MX 1.25mm 4pin MX 1.25mm 6pin MX 1.25mm 4pin
