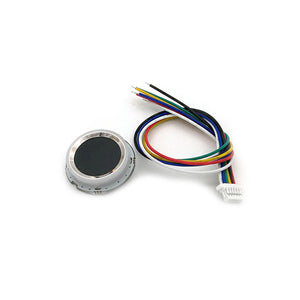

R502-A Capacitive Fingerprint Reader Module Sensor Scanner Small Thin Circular Ring LED Control DC3.3V MX1.0-6pin

R502-A Capacitive Fingerprint Reader Module Sensor Scanner Small Thin Circular Ring LED Control DC3.3V MX1.0-6pin

  • Save R 647.91
Tax included.
SKU:

Features:

1. Integrated image collecting and algorithm chip together, ALL-in-One
2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate
3. The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box
4. The R502-A has circular ring indicator light that can be controlled by command.

Specifications:

Model
R502-A
Type
Capacitive Fingerprint Module
Interface
UART(TTL)
Resolution
508 DPI
Voltage
DC 3.3V
Fingerprint Capacity
200
Sensing array
192*192 pixel
Working current
20mA
Standby current
Typical touch standby voltage: 3.3V, Average current: 2uA
Fingerprint module external size
Diameter 22 (mm)
Fingerprint module inner size
Diameter 19.3 (mm)
Fingerprint module height
5 (mm)(Except the connector)
Effective collection area
Diameter 15.5 (mm)
Connector
MX1.0-6Pin
LED Control
YES
LED Color
Purple and Blue and Red
Scanning Speed
< 0.2 second
Verification Speed
< 0.3 second
Matching Method
1:1; 1:N
FRR
??%
FAR
??.001%
Work environment
-20C ---60C
Work Humidity
10-85%
Anti-static capacity
15KV
Abrasive resistance intensity
1 million times
Communications baud rate (UART):
(9600 ? N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual

Package Included:

1 x R502-A Capacitive Fingerprint Module Sensor Scanner

Model R501 R502 R502-A R502-AW R503
Diameter 36mm 22mm 22mm 55*50*8.4mm 28mm
Interface UART UART UART UART UART
Voltage DC4.2-6V DC3.3V DC3.3V DC3.3V DC3.3V
Resolution 508DPI 508DPI 508DPI 508DPI 508DPI
Working current 42mA 18mA 20mA 20mA 20mA
Fingerprint capacity 500 200 200 200 200
Sensing Array 190*192 pixel 190*192 pixel 190*192 pixel 190*192 pixel 190*192 pixel
Effective collection area diameter 15.5 mm diameter 15.5 mm diameter 15.5 mm diameter 15.5 mm diameter 15.5 mm
Finger touch function YES YES YES YES YES
LED Color Red/Blue Purple/Red/Blue Purple/Red/Blue Purple/Red/Blue Purple/Red/Blue
LED Control No Yes Yes Yes Yes
Connector MX 1.25mm 6pin MX 1.0mm 6pin MX 1.0mm 6pin MX 1.0mm 6pin MX 1.0mm 6pin
Connect control board K200/K202/K212/K215 V1.2/K216 K200-3.3/K202/K215-V1.2/K216 K200-3.3/K202/K215-V1.2/K216 K200-3.3/K202/K215-V1.2/K216 K200-3.3/K202/K215-V1.2/K216
