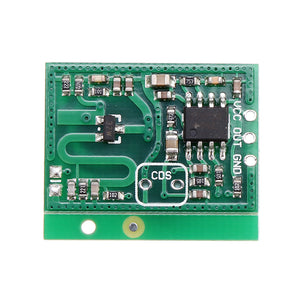

RCWL-0515 Microwave Radar Induction Switch Module Human Body Intelligent Induction Detector
Tax included.
Product Description:
RCWL-0515 is a microwave induction module that uses Doppler radar technology to specifically detect the movement of objects. Using 2. 7G microwave signal detection, the module has the characteristics of high sensitivity, long sensing distance, strong reliability, large sensing angle, wide supply voltage range and so on.
Microwave induction is a new type of induction mode without dead angles, based on the principle of Doppler radar. Its antenna emits electromagnetic waves and receives reflected echoes, which can effectively suppress the interference of higher-order harmonics and other clutters; it has strong reliability, safety and convenience.
Compared with infrared products: the microwave switch has a longer sensing distance, a wide angle, no dead zones, can penetrate glass and thin wooden boards, and can penetrate walls of different thicknesses according to different powers, and is not affected by environment, temperature, dust, etc., at 37 In the case of degrees, the sensing distance will not shorten. Widely used in various human induction lighting and anti-theft alarm and other occasions.
Main Features:
Working voltage: 4-18V
Working current: 4mA
2. 7G operating frequency
Reserved patch and in-line CDS interface
12 meters typical sensing range
Adjustable sensing distance
Lead-free process
Adjustable repeat trigger time
Typical Application:
Corridor lights, sensor lights, solar lights
UV disinfection lamp
Human body motion sensing
| Number | Symbol | Function description |
| 1 | GND | Power ground |
| 2 | OUT | Output: H ??3.3V, L ??0V |
| 3 | VCC | 4-18V power supply |
| CDS | Trigger control signal: Less than 0.7V, the output is always low Greater than 0.7V, working normally The CDS pin is externally connected to a photoresistor, and the module detection function is turned off during the day. Internal pull-up resistor 1M to VCC |
| Symbol | Parameter | Value | Unit |
| VDD | Embedded large working voltage | -0.5 to +18 | V |
| V0MAX | Large pressure suppression at the output | 5.5 | V |
| Tstg | Storage temperature | -40 ~ 110 | °C |
| TOP | Operating temperature | -20 ~ 100 | °C |
| Symbol | Parameter Description | Test Conditions | MIN. | TYP. | MAX. | UNIT |
| VIN | Working voltage range | VIN input | 4 | - | 15 | V |
| I IN | Working current | Output no load VIN=4V | - | 4 | 5 | mA |
| Output no load VIN=12V | - | 4 | 5 | mA | ||
| VOUT | Output high level | 3.25 | 3.3 | 3.35 | V | |
| θ | Detection angle | Antenna front | 360 | - | V | |
| S | Detection distance | 7 | 12* | 15 | M | |
| d_Front | Front detection distance | θ=0 ° No obstacles | - | 12* | - | M |
| d_Back1 | Reverse detection distance | θ=0 ° No obstacles | - | 10* | - | M |
| d_Back2 | Reverse detection | 10CM concrete wall | - | 3* | - | M |
| Transmit power | 20 | 30 | mW | |||
| Trigger method | Trigger repeatedly |
Package includes:
1 x Induction Switch Module
