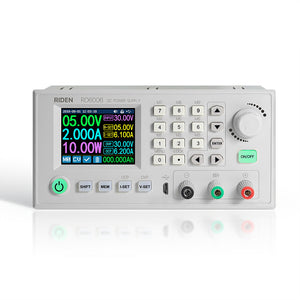

RD6006/RD6006-W Digital Control Switch Adjustable Power Supply DC Stabilized Power Adapter Buck Module Monitoring Power Supply
Tax included.
If you need the S06A Case, please buy Product ID: 1587330
If you need the power supply, please buy Product ID: 1594324 (Please use this matching power supply. After-sales service is not provided due to problems caused by other power supplies. Thank you) Please select 60V output power supply
Technical Parameter:
| Model: RD6006/RD6006-W (optional) | Display Screen: 2.4 inch color LCD display |
| Input voltage range: 6-70.00V | Input voltage measurement resolution: 0.01V |
| Output voltage range: 0-60.00V | Output voltage measurement resolution: 0.01V |
| Output current range: 0-6.000A | Current setting measurement resolution: 0.001A |
| Output power range: 0-360.0W | Battery voltage measurement resolution: 0.01V |
| Output voltage accuracy: ±(0.3%+3 digits) | Output current accuracy: ±(0.5%+5 digits) |
| Input voltage accuracy: ±(1%+5 digits) |
Battery voltage measurement accuracy: ±(0.5%+3 digits) |
| Output ripple typical: 100mV VPP | Working temperature range:-10?ƒ~40??/span> |
| Constant voltage mode response time: 2ms (0.1A-5A load) | External sensor Temperature detection range: -10?ƒ~100??0?‰~200??/span> |
| Constant voltage mode load?‚adjustment rate : ±(0.1%+2 digits) | External sensor Temperature detection accuracy: ± 3?? ± 6??/span> |
| Constant current mode load?‚adjustment rate: ±(0.1%+3 digits) | Capacity measurement range: 0-9999.99Ah |
| Screen brightness setting: 0-5 level total 6 levels |
Energy measurement range: 0-9999.99Wh |
| Weight(with package): 607g | Capacity and energy statistical error: ±2% |
| Product dimension: 167*81*65mm |
Working mode: Buck mode Voltage drop >1V and >10% |
Core Function:
Keypad + encoder potentiometer combination adjustment
2.4 inch HD color screen
Battery charging special interface
Data quick storage & recall
New PC software
Wi-Fi connection, Phone APP control
Package includes:
1 x RD6006 Digital Control Switch Adjustable Power Supply
Package includes:
1 x RD6006 Digital Control Switch Adjustable Power Supply
Note before buying:
1. RD6006 has two versions: RD6006 and RD6006-W, RD6006-W have WIFI board, RD6006 doesn't have. RD6006-W can use the WIFI board to connect APP and software, also use USB micro cable to connect PC software. RD6006 doesn't have WIFI board, it only supports PC software by connecting with USB micro cable, no support APP.
2. For PC software, it only supports win 7 and above for now. For APP, it only supports Android 5.0 and above. for APP and PC software, please download first before buying, if you can download and install, you can make the order, or else stop buying.
3. For APP and PC software, before buying, please download and install first, if it can't be installed, stop buying. because of some PC language and phone system problems, it can't be install. so please check first before buying.
Document download:
Document download:
A: Main download llink in English and Russian: https://drive.google.com/open?id=17V-JWHvqMF-NuWSznEiJ4RKrnn_Pkt5v
B: Back up download link: http://www.ruidengkeji.com/rddata/RD6006/RD6006.rar
2. Android APP: Search RdPower to download at Google Play, or download at file link https://drive.google.com/open?id=17V-JWHvqMF-NuWSznEiJ4RKrnn_Pkt5v, Support android 5.0 and above phone
IOS APP download: Search RdPower to download, support IOS8.0 and above phone
