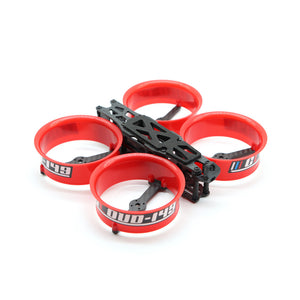

Reptile CLOUD-149HD 149mm Wheelbase 3 Inch Racing Frame Kit Compatible DJI Digital FPV System

R 1,730.84
Unit price per
Save R 1,730.84

Tax included.

Reptile CLOUD-149HD 149mm Wheelbase 3 Inch Racing Frame Kit Compatible DJI Digital FPV System

Specification:
Brand Name: Reptile
Model: CLOUD-149HD

Wheelbase: 149mm

Upper plate length:156mm

Lower plate length:156mm

Weight: 115g (Include print part)

Bottom plate: 2mm

Top plate: 2mm

Arm plate:3mm

Position of FC installation hole: 20*20mm/30.5*30.5mm

Camera mounting hole distance:20mm

Distance of installation hole of motor:12mm

Plastic parts: ABS material plastic Diversion ring

Printed parts: TPU antenna base

Features:

1. Suitable for DJI FPV System

2. Video unocclusion

3. Beautifully designed,rugged and durable

4. High quality carbon plate,precision cutting

5. Includes 3D printed Parts for installing DJI FPV System

Recommend Parts:

Flight Controller: 20x20mm OR 30.5x30.5mm RF / Kiss / F4 / F3 / F7 FC

Brushless ESC: 20A-50A

Propeller: 3 Inch Propeller

Brushless Motor: 1306 / 1408 / 1506 Motor

VTX & FPV Camera: DJI FPV Air Unit

Battery: 4S 650mAh - 6S 1300mAh Lipo

The following parts are compatible: ( NOT Included)
FC & ESC Stack: 20x20mm iFlight SucceX-D Mini F7 TwinG Stack (F7+40A ESC)
Brushless Motor: MAMBA 1408 4000KV 4S Brushless Motor
Propeller: 2 Pairs iFlight MegaBee V2 Parts 3045 3x4.5 3 Inch 3-Blade Propeller
VTX & Camera: DJI Digital FPV System Air Unit HD Camera Goggle Radio Transmitter Combo
Lipo Battery: Tattu R-Line V1.0 14.8V 850mAh 95C 4S1P Lipo Battery XT30 Plug

Package Included:

1x Top plate

2x Side plate

1x Bottom plate

2x Arm plate

4x plastic Diversion ring

1x 3D Printing TPU Antenna base

8x Aluminum pillar

1x 3D Printing TPU Mounting Base for DJI FPV transmitter
