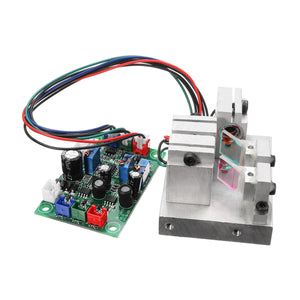

RGB 300mW White Laser Dot Module Red Green Blue 638nm 520nm 450nm TTL Driver Modulation
Tax included.
Specifications | |
Modulation Mode | TTL modulation / Analog modulation |
Wavelength | R: 638nm, G: 520nm, B: 450nm |
Output Power | R: 100mW, G: 80mW, B: 120mW |
Combined Optical Power Output | 300mW |
Laser Grade | Class 3 |
Divergence | ≤1mrad |
Enter Stability | ±5% |
Input Voltage | DC 12V |
Rated Power Consumption | 10W |
Operating Temperature | -10~40??/span> |
External Heat Dissipation | None |
Operating Lifetime | 10000h |
Wire Length | 250mm |
Spot Mode | Round Spot |
Product Size | Approx. 63x50x40mm/2.48x1.97x1.57" |
Features:
- RGB 300mW white laser module
- With TTL modulation control driver board
- Precision science and thermal design, two-way temperature control and improve the temperature protection, you can extend the life of the laser
Package Included:1 x RGB 300mW White Laser Module
