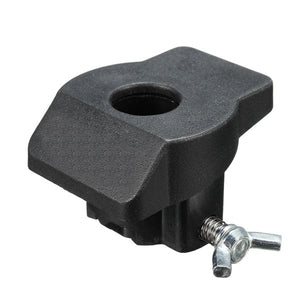

Sanding Grinding Guide Attachment Locator Positioner Woodworking Tool



Material : Plastic

Quantity: 1pc

Application: Fits for Models: 4000, 400, 398, 395, 3000,285, 275, 200, 100, 8200, 800, 780



1. Made of engineering plastics, high temperature resistance.

2. Enhanced control during sanding and grinding applications.

3. Platform offers stability during edge sanding and sharpening.

4. Adjustable depth control for a precise finish.

5. The guide has a 90 and 45 degree bevel for various sanding applications.

6. Please note that Router bits are not allowed to use with the Sanding/GrindingGuide attachment.



Step 1: Remove the housing cap A from the end of the tool and set housing cap aside. The original housing cap must be reinstalled when this attachment is not used (Fig. 1).

Step 2 & 3: Loosen the collet nut and place your accessory in and tighten.

The attachment is for ½” diameter accessories or smaller.

When inserting a bit into your Rotary Tool be sure that the bit is securely inserted into the collet.

Always use the wrench to tighen the collet nut to prevent the bit from loosening within the collet.

Do not use the Chuck.)

Step 4: Thread the attachment B onto the threaded portion of the housing collar C (Fig. 2).

Step 5: Adjust the attachment B to the desired depth by loosening the wing knob D (Fig. 3).





1. Please allow a bit error due to manual measurement. please make sure you do not mind before you bid.

2. The color may have different as the difference display, pls understand.
