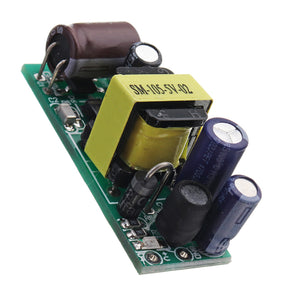

SANMIM DC 5V 1A 5W Precision AC To DC Isolated Switch Power Supply Module MCU Relay Module
Tax included.
Features:
-The product is easy to install and can be used directly on the motherboard.
-Worldwide universal input voltage: 85-264V AC or 110-370V DC
-High efficiency, high power density, low output ripple, high output voltage accuracy
-High isolation between input and output
-Over current protection, short circuit protection and temperature protection
-Output built-in LC type filtering, no external filter circuit is required
Parameters Introduced:
Input voltage : AC 85 To 264V / DC 110-370V
Output voltage: DC5V (± 0.2V)
Output current : 1A
Power : 5W
Frequency Range: 47-63
Output voltage accuracy: 1%
Package Included:
1 x Precision Switch Power Supply Module
