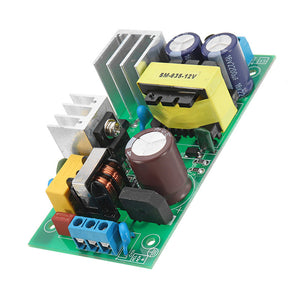

SANMIN AC-DC 12V3A Isolated Switching Power Supply Module Industrial Power Board
Tax included.
Feature:
Input voltage: AC 85-264V or DC 110-370V
Frequency range: 47-63Hz
Input current: 1/115VAV, 0.5/230VAC
Inrush current: 20A/230VAC(Cold start)
Conversion efficiency: 80%
Standby power consumption: ≤150mW/230VAC
Output voltage: 12V (±1%)
Rated current: 3A
Rated power: 36W
Ripple: ≤100mV
Switching frequency: 20-65KHz
Operating temperature: -30-70??br />Working humidity: 20-90%, Non-condensing
Package included:
1 x AC-DC 12V3A Isolated Switching Power Supply Module
Input voltage: AC 85-264V or DC 110-370V
Frequency range: 47-63Hz
Input current: 1/115VAV, 0.5/230VAC
Inrush current: 20A/230VAC(Cold start)
Conversion efficiency: 80%
Standby power consumption: ≤150mW/230VAC
Output voltage: 12V (±1%)
Rated current: 3A
Rated power: 36W
Ripple: ≤100mV
Switching frequency: 20-65KHz
Operating temperature: -30-70??br />Working humidity: 20-90%, Non-condensing
Package included:
1 x AC-DC 12V3A Isolated Switching Power Supply Module
