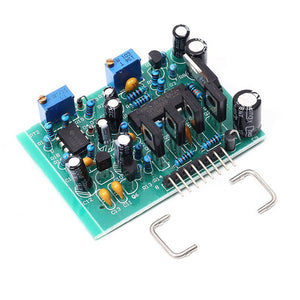

SG3525 LM358 5000W Inverter Driver Board 13-40KHz High Current High Frequency Adjustable DC 12-24V Driving Board

SG3525 LM358 5000W Inverter Driver Board 13-40KHz High Current High Frequency Adjustable DC 12-24V Driving Board

  • R 306.87
    Unit price per
  • Save R 306.87
Tax included.

SKU:

Features:

1.Voltage Range:12-24V
2.Power Transposition Protection
3.Preceding Stage Overcurrent (short circuit) Protection
4.Backing Stage Overcurrent (short circuit) Protection,adopt locking protection
  ie:after protection,it needs to loosen driving power switch;push again,there will be driving signal output
5.Frequency Range:13KHz-40KHz
6.High Power TO-220 output(can drive 5000W motor)
7.6s Automatic Power Off Function,and it will effectively protect human body( time can be adjusted with R7,  remove the R7 to cancel the automatic OFF function)
8.Chip:SG3525
9.Resistance Material:metal film


Package Included:

1 x SG3525 LM358 5000W Inverter Driver Board
