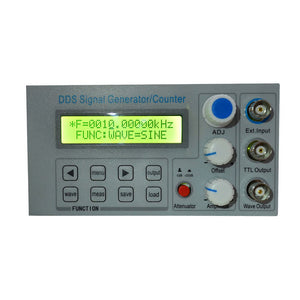

SGP1002S Digital Signal Generator DDS Function Generator Sine Wave Arbitrary Waveform Frequency Generator

Tax included.

Frequency
Model	SGP1002S	SGP1005S	SGP1010S
Sine	0.01Hz-2Mhz	0.01Hz-5Mhz	0.01Hz-10Mhz
Square	0.01Hz-2Mhz	0.01Hz-5Mhz	0.01Hz-10Mhz
Ramp/Triangle	0.01Hz-2Mhz	0.01Hz-5Mhz	0.01Hz-10Mhz
Pulse	0.01Hz-2Mhz	0.01Hz-5Mhz	0.01Hz-10Mhz
TTL	0.01Hz-2Mhz	0.01Hz-5Mhz	0.01Hz-10Mhz
Others	0.01Hz-2Mhz	0.01Hz-5Mhz	0.01Hz-10Mhz
Signal Output Function
Output waveforms	Sine wave, Square wave (Duty cycle adjustable) and Triangle wave (include sawtooth wave)
Output amplitude	≥10Vp-p (signal output, no load) About 0.1Vp-p (MIN)
Output impedance	51Ω±10%(signal output)
DC offset	±3V(no load)
Resolution	0.01Hz(10mHz)
Frequency accuracy	±5×10-6
Frequency Stability	±2×10-6/3 Hours
Sine wave distortion	≤0.8% (reference frequency is 1kHz)
Triangle linearity	≥98% (0.01Hz~10kHz)
Rise and fall time	≤100ns(square wave)
Duty range	1%~99%(digital control mode)
TTL Output Function
Amplitude	>3Vp-p
Fan Out	>20 TTL loads
COUNTER function
Counter Range	0-4294967295
Frequency Meter Range	1Hz~60MHz
Input Voltage Range	0.5Vp-p~20Vp-p
SWEEP function
Sweep mode	Linear sweep, Logarithmic sweep
Sweep range	fM1 (pre-set) to fM2 (pre-set)
Sweep time	1s~99s
Others
Display	LCD1602 in English
Save and Load Parameter	M0-M9(M0: default load)
Size	135mm65 mm35mm
Buzzer warning tone	Can be turned On/Off by setting
Production technology	Surface mounting technology, large scale integrated circuit, reliable and durable
Operation feature	Button-controlled, Knob-adjusted continuously
Conditions requirement	Temp: 0~40??nbsp; Humidity: <80%
