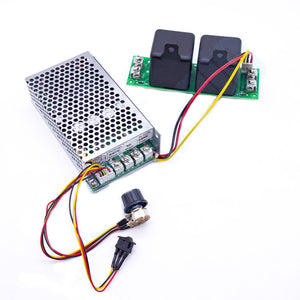

Soft Start PWM Control Module DC Motor Speed Controller Reversible 10-50V 100A 5000W with 250A Dual Relay Control
Tax included.
Feature:
- Larger current, max current up to 100A, continuous operating current of up to 60A.
- Wide voltage from 10V to 50V, wider range of applications.
- Reversing control motor, customized 250A dual relay control, can withstand higher current.
- Programmable to meet subsequent extensions.
- With soft start to reduce the shock of large current when the motor starting.
- With brake when the power off or change the rotation of the motor.
Specifications:
Power requirement: DC 10-50V
Rated current: 60A (Max output current: 100A)
Frequency: 15kHZ
Control Motor Power: 0.01-5000W,
12V: 1200W(max), 24V: 2400W(max) , 36V: 3600W(max), 48V: 4800W(max), 50V: 5000W(max).
Standby current: 0.1A
Regulation range: 0-100%
Size: 145x78x38mm
How to Use:
1. There are one rocker switch and one potentiometer on the controller. The rocker switch is a reversal switch. The pot has five wires, two as the power switch, three as the pot. Turn the pot to the mini end, the controller will be powered off.
2. The power switch is on, the controller is powered on. The power switch off, the motor will be brake.
3. The reversal switch on, the motor forward, the switch off, the motor backward. When the motor change the direction of thr rotation, the motor will be braked and soft start to the setted speed.
4. When you turn the pot, the motor change the speed.
Package Included:
1 x 10-50V 100A 5000W Reversible DC Motor Speed Controller
1 x 250A Dual Relay
