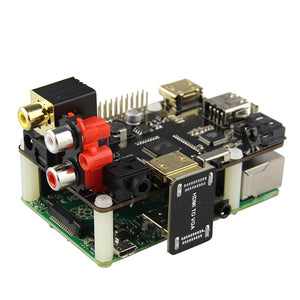

SupTronics X600 Expansion Board For Raspberry Pi 2 Model B / B+

SupTronics X600 Expansion Board For Raspberry Pi 2 Model B / B+

  • Save R 1,740.20
Tax included.
SKU:
SupTronics X600 Expansion Board For Raspberry Pi 2 Model B / B+

Feature:

Input Voltage: - 6V to 20Vdc converted to 5V, 3A via step-down DC/DC converter to power the Raspberry Pi and SATA device
SATA:  Allows you to connect SATA devices to your Raspberry Pi
Wireless: - Built in IR sensor (38KHz)
- Allows you to extract audio signals from HDMI of your Raspberry Pi
- Converts HDMI audio to digital optical or Coaxial or stereo RCA analog
- The SPDIF optical or Coaxial audio output supports all audio formats up to 5.1CH Dolby Digital 5.1CH / AC3 & DTS 5.1CH audio
- Extract digital 2CH PCM stereo audio signal from the HDMI input and convert it to 2CH analog stereo output through its RCA style L/R analog output or earphone jack
- Provides the Best Flexibility through Three NEW Audio EDID Settings: Pass, 2CH and 5.1CH
- Maintains surround format when converting to digital optical audio
- Supports high definition input up to 1080p@(24/60)Hz, output resolution follows input
- Supports HDMI signal amplification and equalization output for repeater function
- HDMI output supports all audio formats including more advanced Dolby Digital Plus, PCM5.1CH and beyond
- Power output socket

-

Directly connected on top of the Raspberry Pi using the board GPIO header pins
- No wiring nor soldering is required
- Duplicated the 40-pin header of the R-Pi in order to support existing expansion boards

Note:

1. The RCA L/R output will not have sound if the incoming audio is multi-channel audio (>2CH). Set EDID switch to 2CH for RCA L/T stereo application.
2. TOSLINK optical audio output does not support Dolby Digital Plus (used by Roku and Chromecast) and higher formats, such as HD audio (Dolby TrueHD, DTS-HD Master Audio, PCM5.1 and beyond).
3. Set audio EDID to 5.1CH for DD5.1CH / DTS5.1CH, use optical output to connect to audio receiver for surround sound.

More information: http://www.suptronics.com/Xseries/x600.html

Package included:

1 x Expansion board
1 x HDMI to VGA connector
1 x USB male to male connector
1 x Pack of install screws
