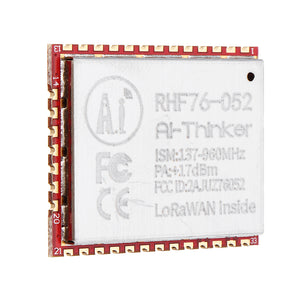

SX1276 Wireless LoRa Module RHF76-052 LoRaWAN Node Module Integrated STM32 Low Power 433/470/868/915MHz

>>>Manual: Click here to open<<<

Features:



- Low-power ATM32 with integrated LoRa wireless transceiver and ST

- Chip solution SX1276, built-in STM32L051C8T6

- Ultra long distance, ultra low power consumption, super anti-interference, ultra high sensitivity

- Working frequency band 433/470MHZ, 868/915MHZ

- Output power up to +17dBm

- Passed FCC&CE, IC, TELEC certification



Specifications:



Module model: RHF76-052

Package: SMD-33

Size: 28*23*(2.95±0.1)mm

Communication interface: UART

Spectrum range: 433/470MHZ, 686/915MHZ

Antenna form: external antenna

Maximum transmission power: 17±0.5dBm

Power supply range: 1.8~3.6V, typical value 3.3V

Communication Protocol: LoRaWAN Protocol Stack



Package Included:



1 x SX1276  LoRa Module RHF76-052 LoRaWAN Node Module
