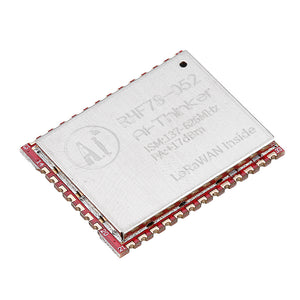

SX1278 Wireless LoRa Module RHF78-052 LoRaWAN Node Module Integrated STM32 Low Power Long Distance 433MHz 470 MHz

>>>Manual: Click here to open<<<

Features:



Low-power ATM32 with integrated LoRa wireless transceiver and ST

Chip solution SX1276, built-in STM32L051C8T6

Ultra long distance, ultra low power consumption, super anti-interference, ultra high sensitivity

Working frequency band 433/470MHZ

Output power up to +17dBm



Specifications:



Module type: RHF78-052

Package: SMD-33

Size: 28x23x(2.95±0.1)mm

Communication interface: UART

Spectrum range: 433/470MHZ

Antenna form: external antenna

Maximum transmission power: 17±0.5dBm

Power supply range: 1.8~3.6V, typical value 3.3V

Communication Protocol: LoRaWAN Protocol Stack



Package Included:



1 x SX1278 Wireless LoRa Module RHF78-052 LoRaWAN Node Module
