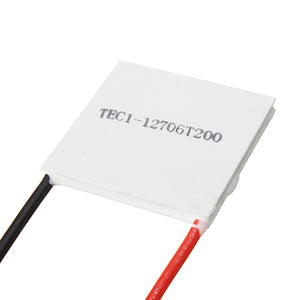

TEC1-12706T200 Semiconductor Refrigerator 200 Cooling Temperature Difference Generator 40x40mm
Tax included.
Description:
Product Type: TEC1-12706T200
Maximum voltage: 15.4V
Maximum current: 6.1A
Maximum cooling power: 59.1W
Maximum thermal power: 92.4W
Shape size: 40 x 40 x 3.8 ± 0.1mm
Ceramic chip size: 40 x 40mm alumina ceramic chip
Component couple: 127
Temperature range: ≥72??/span>
Withstand assembly pressure: 98N / square centimeter
Cable length: 300mm
Principle: Seeback effect
Working temperature range: -60 ~ +200??/span>
Raw material: bismuth telluride
Boule Specifications: 30mm L-30cm
Thermoelectric parameters:
Thermal electromotive force (a):> 190 × μV /
Conductivity: 850 ~ 1250Ω-1.cm-1
Thermal conductivity (K): 15 ~ 16 × 10-3-W / cm
Resistance: about 2Ω
Thermoelectric conversion rate: 3%
Merit (Z): 2.5 ~ 3.0 × 10-3W /
TEC1-12706T200Thermoelectric power generation field Specifications, for reference only.
With the word side posts near the cooling surface (cold)
No word into the side posts endothermic surface (hot side)
Red wire is positive, black wire is negative
Temperature difference 40?? open-circuit voltage 2.2V, generated current: 390MA
Temperature difference 80?? the open circuit voltage 3.5V, generation current: 480MA
Temperature difference 100?? open-circuit voltage 4.5V, generated current: 560MA
Temperature difference 120?? open-circuit voltage 6.0V, generated current: 650MA
Temperature difference 140?? open circuit voltage 7.0V, generated current: 750MA
Thermoelectric power generation module,Is the leading domestic level, the internal resistance, high temperature, long life. Fully meet the needs of the development of the temperature difference between the generator.
If both sides can reach temperature difference 60?? the generated voltage can reach 3.5V, current can reach 3-5A.
Package included:
1 x TEC1-12706T200 semiconductor refrigerator
