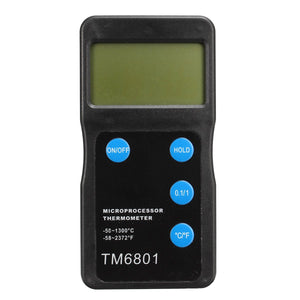

TM6801 High Temperature Microprocessor Thermometer Pyrometer -50-1300
Tax included.
Features:
Can adapt to any standard K thermocouple (nickel-chrome-nickel silicon).
Can adapt to any standard K thermocouple (nickel-chrome-nickel silicon).
Fixed standard k-type sockets.
Liquid crystal display, which minimized energy consumption.
Large scale integrated circuits provide high reliability and high stability.
High accuracy and wide measurement range.
Compact, portable and convenient operation.
The circuit uses a number of high quality adjustable resistors, which can be used to maintain high accuracy and reliability.
Specification:
Material: Plastic
Color: Black
Measuring range: -50??1300?? ( -58??2372??)
Resolution: 0.1 ?? 0.1 ??/span>
Input signal: K
Accuracy: -50?僼o-199.9??0.2%rdg+1??-50?塼o-199.9??0.2%rdg+1??/span>
Measuring range:-50~250??-50~750??-50~1100??-50~1300??/span>
Power Supply: 1 x 9V Battery (not include in package))
Size: 32 x 20 x 16.6mm
Cable Length: 1.5M
Default Probe:
Transition style with Inconel 600 body.
Working temperature range: -50-1100 °C, -58-2000 °F.
Probe diameter: 0.12" (3 mm).
Probe length: 6" (150 mm).
Transition section dimension: 0.3” in diameter and 1” long.
Maximum temperature on the transition section: 750 °F (400 °C).
Cable length: 4.5 ft (1.5 meter).
Cable insulation: fiberglass with stainless steel overbraid (900 °F).
Package Included:
1 x High Temperature Thermometer
1 x Probe
Detail Pictures:
Detail Pictures:
