TMC2130 Stepper Motor Driver Module w/Heat Sink & Screwdriver For 3D Printer
Tax included.
Features:
1. The driver boards are hardware compatible with StepStick and Pololu A4988.
2. Two-phase stepper motor single-phase current 2A (peak 2.5A) motor operating currently adjustable
3. Support Step / DIR interface and SPI interface, two control methods
4. Combined with maximum efficiency and optimum motor torque without noise operation
5. High-precision sensorless motor load detection
6. To reduce energy consumption by 75%
| Specification | |
| Model | TMC2130 |
| Interface | Step/Dir or SPI |
| Configuration | CFG Pins or SPI |
| Native Microsteps* | Up to 1/256 |
| MicroPlyer Microsteps | 1/256 |
| Logic Voltage VIO | 3-5V |
| Motor Voltage VM | 5.5-46V |
| Motor Phase Current | 1.2A RMS, 2.5A Peak |
| VM always needed** | Yes |
| Internal V- Regulator** | Enabled |
| RDSon | >=0.5 Ohm |
| StealthChop (quiet) | Yes |
| Spread Cycle | Yes |
| CoolStep | Yes |
| StallGuard | Yes |
| Dcstep | Yes |
Note:
* Due to different producing batches, product details might be a little different. If you minding the difference, please buy it carefully.

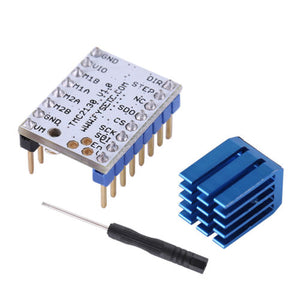

Package Included:
1 x TMC2130 Driver
1 x Heatsink
1 x Screwdriver
* Due to different producing batches, product details might be a little different. If you minding the difference, please buy it carefully.
Package Included:
1 x TMC2130 Driver
1 x Heatsink
1 x Screwdriver
