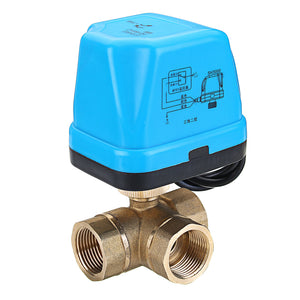

TMOK 1/2 3/4" 1" Blue Shell 3 Way Motorized Electric Brass T Ball Valve 3 Wire AC 220V Full Port"

TMOK 1/2 3/4" 1" Blue Shell 3 Way Motorized Electric Brass T Ball Valve 3 Wire AC 220V Full Port"

  • Save R 1,903.70
Tax included.
SKU:
Description:
This motorized ball valve is made of solid brass, will fully open or fully close in 5~15 seconds. Once in position, it automatically stops using energy. This is important as it will never overheat.This is a key difference between motorized ball valves and solenoid valves. Most solenoid valves are constantly energized, while these electrical ball valves are not, making them a safer and more eco-friendly option.

Specification:
General Specification
 Brand  TMOK
 Model  Blue Shell
 Valve Type  3 Way Ball Valve, T Type Ball Valve
 Size  1/2"(DN15), 3/4"(DN20), 1"(DN25), 1-1/4"(DN32)
 Technical Parameters
 Body Material  Brass
 Seal Material  PTFE
 Connector Type  G Thread Female
 Nominal Pressure  1.6MPa (PN16)
 Fluid Temperature  2~94??/td>
 Environment Temperature  0~60??/td>
 Voltage  AC 220V
 Wire Control  3 Wire
 Power Consumption  6W (Only use electricity during opening or closing.)
 Open/Close Time  5~15s
 Bore Type  Full Port
 Enclosure Rating  IP65

Features:
- Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.
- Female threads for connecting to male threaded pipes.
- Will fully open or close valve in 5~15 seconds, once in position, it automatically stops using energy.
- Save energy, reduces likelihood of overheating, long service life.
- Provided with four sizes from 1/2" to 1-1/4" for option, well fits for different applications.

Package Included:
1 x Motorized Brass 3 Way Ball Valve
