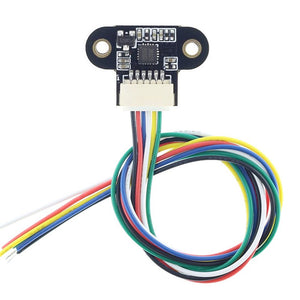

TOF10120 Laser Range Sensor Module 10-180cm Distance Sensor RS232 Interface UART I2C IIC Output 3-5V
Tax included.
>>>Manual: Click here to open<<<
Overview:
Overview:
TOF10120 range sensor provides accurate and repeatable long range distance measurement for high-speed autofocus (AF). The innovative time-of-flight technology allows
performance independent of object reflectance.TOF10120's time-of-flight sensing technology is realized by Sharp's original SPAD (Single Photon Avalanche Diodes ) using low-cost standard CMOS process. It enables accurate ranging result, higher immunity to ambient light and better robustness to cover-glass optical cross-talk by special optical package design.
Features:
??40nm laser classified as class 1 under operation condition
by IEC 60825-1:2014-3rd edition
?»Small ceramic package(20×13.2×2.0mm)
?»Long range absolute range measurement up to 1.8m
within 5% accuracy at indoor
?»Reported range is independent of the target reflectance
?»Operates in high infrared ambient light levels
?»Advanced optical cross-talk compensation
?»High speed ranging MAX 30ms
?»Standard solder reflow compatible
?»No additional optics
?»Single power supply
?»Txd interface for device control and data transfer
?»High-speed AF
?»Continuous AF for video
?»User detection for Personal Computers/
?»Laptops/Tablets
?»Robotics (obstacle detection)
?»White goods (hand detection in automatic
Specifications:
Ranging Range 100 - 1800mm
VCC: 3 - 5V DC
ICC_VDD: 35mA
Topr - 20 + 70 °C
Tstg - 40 + 85 °C
Communication protocol
Bits per Second:9600
Data Bits : 8
Parity : None
Stop bits : 1
Flow Control : None
Cable:
? GND Black
?¡VCC Red
?¢RXD Yellow
?£TXD white
?¤SDA blue
?¥SCL purple
Package Included:
1 x TOF10120 Laser Range Sensor Module 10-180cm Distance Sensor
