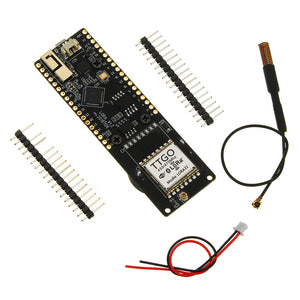

TTGO T-Fox LoRa32 V1.1 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch bluetooth WIFI Wireless Module ESP-32
Tax included.
| Hardware | Specifications |
| Chipset | ESPRESSIF-ESP32-PCIO-D4 240MHz Xtensa® dual-core 32-bit LX6 microprocessor |
| FLASH | QSPI 4MB flash / 8MB SRAM |
| SRAM | 520 kB SRAM |
| KEY | Reset, IO36 |
| Dispaly | 0.96 SSD1306 |
| Power indicator lamp | Red |
| USB to TTL | CP2104 |
| Modular interface | SD card, UART, SPI, SDIO, 12C, LED PWM, TV PWM, I2S, I2C, IRGPIO, capacitor touch sensor, ADC, DACLNA pre-amplifier |
| Lora | TTGO LORA |
| On-board clock | 40MHz crystal oscillator |
| Working voltage | 2.3V-3.6V |
| Working current | about 60mA |
| Sleep current | 900 uA |
| Working temperature range | -40??/span> ~ +85??/span> |
| Size | 80.14mm*25.15mm*11.95mm |
| Power Supply | Specifications |
| Power Supply | USB 5V/1A |
| Charging current | 500mA |
| Battery | 3.7V lithium battery |
| WIFI | Description |
| Standard | FCC/CE/TELEC/KCC/SRRC/NCC |
| Protocol | 802.11 b/g/n/e/i (802.11n, speed up to150Mbps)A-MPDU and A-MSDU polymerization, support 0.4μS Protection interval |
| Frequency range | 2.4GHz~2.5GHz(2400M~2483.5M) |
| Transmit Power | 22dBm |
| Communication distance | 300m |
| bluetooth | Description |
| Protocol | meet bluetooth v4.2BR/EDR and BLE standard |
| Radio frequency | with -98dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH |
| Audio frequency | CVSD&SBC audio frequency |
| Software | Description |
| Wifi Mode | Station/SoftAP/SoftAP+Station/P2P |
| Security mechanism | WPA/WPA2/WPA2-Enterprise/WPS |
