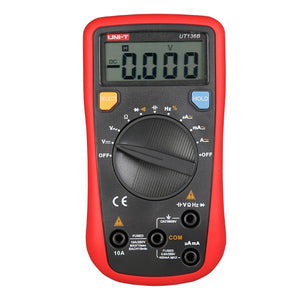

UNI-T UT136B Auto Range Digital Multimeter AC DC Resistance Tester

UNI-T UT136B Auto Range Digital Multimeter AC DC Resistance Tester

  • Save R 1,084.16
Tax included.
SKU:
Description :

UNI-T UT136B Auto Range Digital Multimeter AC DC Frequency Resistance Tester

Features :

100% brand new and high quality
Diode Test
Continue Buzzer
Auto. Off
Low Batt. Display
Input Imp. For DC Voltage Measure: ≥10MΩ
Auto Data Hold
Max. Display: 3999

Tilt stand design, three observation angles is in favor of reading display
Overload protection:
mA range: F1 fuse φ5x20mm, F 0.5A H 250V
10A range: F2 fuseφ5x20mm, F 10A H 250V
(When ≤5A continuous measurement is allowed, when >5A continuous measurement less than 10 seconds at an interval more than 15 minutes)
Frequency: 40Hz ~ 400Hz
Display effective value of sine wave(average value) each measurement is applicable from 5% of range as reference.

Specifications :

Specification UT136B
Basic Function Range Acuracy
DC voltage 400mV/4V/40V/400V/500V ±(0.8%+1)
AC voltage 400mV/4V/40V/400V/500V ±(1.2%+3)
DC current 400uA/4mA/40mA/400mA/4A/10A
  		±(1.0%+2)
AC Current 400uA/4mA/40mA/400mA/4A/10A ±(1.2%+5)
Resistance 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ ±(1.0%+2)
Capacitance 4nF/40nF/400nF/4uF/40uF/100uF ±(4.0%+3)
Frequency 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(0.5%+3)
Duty cycle 0.1%-99.9%  √
Special Function
Diode Test    √
Continue Buzzer    √
Auto. Off    √
Low Batt. Display    √
Input Imp. For DC Voltage Measure  ≥10MΩ  √
Auto Data Hold    √
Max. Display    3999


Package includes :

1 x UNI-T UT136B Digital Multimeter
2 x Test Leads line(red&black)
1 x User Manual

Details pictures :
