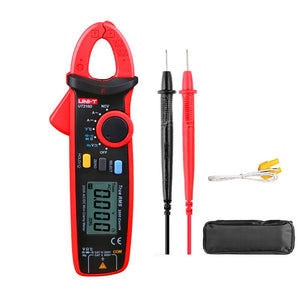

UNI-T UT210D Digital Clamp Meter Temperature Measurement Auto Range Capacitance Multimeter AC/DC Cur

UNI-T UT210D Digital Clamp Meter Temperature Measurement Auto Range Capacitance Multimeter AC/DC Cur

  • Save R 3,058.80
Tax included.
SKU:

>>Please Click Here to Download the English User Manual<<




Features:

It is a mini 200A True RMS auto range digital clamp meter with 2000 display count portable and multifunctional device.

Voltage and current RMS measurement
With high-precision frequency measurement function.Minimum differentiate 0.001HZ
With up to differentiate 1pF maximum measured capacitance auto range measuring function of 2000uf;
With no-contact AC voltage sensing measurements(NVC) function;
Auto range,2-3/s sampling rate
Have a measurable voltage drop of 3V diode measurements.Very convenient LED judge good or bad;
Data Hold function,automatic shutdown and backlight;
Temperature measurement,°C and °F for choice,small and easy to carry.

Display Count: 2000
Auto Range
Jaw Capacity:17mm
True RMS
Diode:Around 3.0V
NCV
Data Hold
Zer'o Mode
LCD Backlight
Auto Power Off: Around 15 Minutes
Continuity Buzzer
Low Battery Indication:≤2.5V
Input Protection
Input Impedance for DCV:  ≥10MΩ
Low battery indication
Overload protection
Max/Min


Specifications:

Specifications                                 Range                                     Best Accuracy

AC Current (A)                              20A/200A                                     ±(2.5%+8)

DC Current (A)                              20A/200A                                       ±(2%+3)

AC Voltage (V)                          2V/20V200V/600V                            ±(1%+3)

DC Voltage (V)                      200mV/2V/20V200V/600V                   ±(0.7%+3)

Resistance (Ω)               200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ           ±(1%+2)

Frequency(Hz)                   10Hz/100Hz/1kHz/10kHZ/60kHz             ±(0.1%+4)

Capacitance (F)        2nF/20nF/200nF/2μF/20μF/200μF/2mF/20mF    ±(4%+5)

Temperature( °C )                       -40 °C ~1000°C                                ±(1%+3)

Temperature(°F)                          -40°F~1832°F                                 ±(1.5%+5)

Power:AAA 1.5V x 2(Not Included)

LCD Size:39.3mm x 26.5 mm

Product Color:Red and Grey

Product Net Weight:170g

Product Size:175mm x 60mm x 33.5mm

?�UT210E

?�UT210C


Package Includes:

1 X UT210D Clamp Meters
1 X Test Lead
1 X Manual
1 X  Point Contact Temperature Probe
