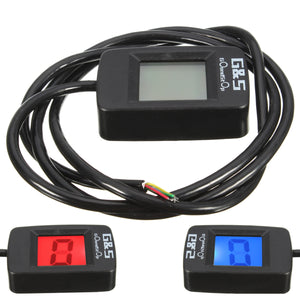

Universal Motorcycle ATV Digital LCD Gear Indicator 1-6 Gear Shift Lever Sensor

Tax included.

Description:

Super Bright LCD display with size 25x22mm screen.

Indicates gears from 1 to max. of 6, as well as a neutral indicator.

Auto programming when turn on the switch key.

Campatible with all motorbikes, four wheelers, dirt bikes etc.- Will fit anything with a shift lever.

Detects the current gear faster than other gear indicators that use speedmoter/tachometer signal.

Specification:

Display Color: Red / Blue

Case Color: Black

Size:

LCD Display: about 59x36.5x16mm

LCD Display cable length: about 97cm

Magnet: 10x4x2mm

Sensor Cable Length: about 98cm

Voltage: DC 12-24V

How it work:

1. A small magnet mounted on the gear shift lever which moves past the upshift and downshift sensor as shifts occur.

2. The shift signals are then sent to the display, where the current gear number is shown

Wiring Installation Guide:

Black: for "-"

Red: for "+"

White: for neutral

Yellow: for the 1st sensor cable 1

Green: for the 2nd sensor cable 1

Blue: for the rest cables of sensor 1 and 2 together

Note:

1. Instruction is not included,professional installation is highly recommended.

2. Please check the size measurement chart carefully before making payment.

3. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)

4. The color of the actual items may slightly different from the listing images due to different
computer screen, thanks for your understanding.

Package Included:

1 X LCD Display

2 X Sensor with Cables

1 X Magnet

1 X English Manual
