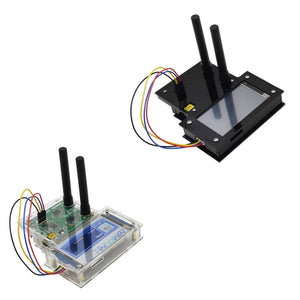

USB Duplex MMDVM Hotspot+Raspberry Pi zero+2pcs Antenna+3.2 LCD+Protetive Case+8G TFT Card

Features:

- USB port design
- High performance 32-bit ARM processor
- Fully tested
- Supports DMR, P-25,D-Star and System Fusion
- Onboard LEDs to show status (Tx,Rx,PTT,Mode)
- Up to 10mW RF power
- SMA antenna connector,Antenna included
- Mounts cleanly on all current Raspberry-Pi's including the Pi 0(zero)
- The firmware is pre-loaded and is easily upgraded via software.
- Open source 3D printable case available
- Uhf 430-450 MHz,433mhz and 900MHz

VHF 144 220 Opera FREQ
Install the firmware with bootloader support for USB connection
If you want to use the device via USB port you have to install a bootloader and build the firmware with bootloader support. As the raw device cannot be used with USB you have to use a USB-serial adapter or STlink device

The upper part is TX,the lower is RX antenna.
UHF+VHF
SMA,antenna
Modem select: STM32_HS_GPIO
Set TX frequency,RX frequency
TX,RX frequency had better 10M or more apart.
SLOT1,SLOT2 support.

Specifications:

Color: Black/Transparent
Material: PCB+Acrylic
Size: 65*75*20mm

Note:
- The firmware is pre-loaded. Please do not upgrade the firmware by yourself.

Package Included: (Fully assembled and tested Jumbo-Spot-RTQ)

1x3.2 LCD display
1xRaspberry pi 0(zero)
1xMMDVM HotSPOT Module
1x8G TFT card
1xCase
2x433Mhz antenna
