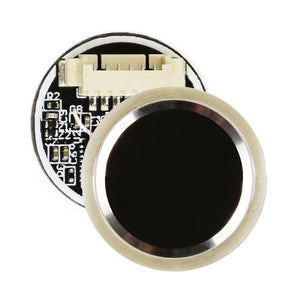

Waveshare Capacitive Fingerprint Recognition Module Touch Sensor Collection and Identification UART Serial Fingerprint Module Board

R 1,296.39
Unit price per
Save R 1,296.39

Tax included.

Introduction:

This is a highly integrated circular integrated capacitive fingerprint module, the size of the fingernail, the serial command operation, supports 360-degree rotation recognition, and has the advantages of fast recognition, strong stability and low power consumption.

The main control of the high-performance Cortex core is integrated with a high-security commercial fingerprint algorithm, which supports functions such as fingerprint entry, image acquisition, feature value extraction, template generation, template storage, and fingerprint comparison.

You don't need to understand the complex fingerprint recognition algorithm, you only need to send commands through the serial port for secondary development, which can quickly integrate me into various fingerprint recognition applications that require high volume and accuracy.

Characteristic:

Easy to use, no need to understand the fingerprint algorithm and internal structure, only a simple command can complete the corresponding operation

Built-in commercial algorithm, support fingerprint input, fingerprint comparison, extract fingerprint image and upload fingerprint feature value, etc., stable performance, fast recognition speed

Capacitive fingerprint recognition, sensitive sensing, as long as your finger gently touches the collection window, it can be quickly recognized

High degree of hardware integration, the main control and fingerprint sensor are integrated, which can be easily embedded into various small volume applications

Stainless steel rigid narrow round structure, large fingerprint sensor contact area, support 360 degree rotation identification

Built-in human induction device, with power-down sleep and touch wake-up function, lower power consumption

Onboard UART interface for easy access to hardware platforms such as STM32 and Raspberry Pi

Parameter:

Sensor type: capacitive touch sensor

Resolution: 508DPI

Image pixel array: 192?192

Image gray level: 8 gray levels

Sensor size: R15.5mm

Fingerprint capacity: 500

Comparison time: <500ms (1:N, and N??00)

False recognition rate: <0.001%

Rejection rate: <0.1%

Working voltage: 2.7~3.3V

Working current: <50mA

Sleep current: <16uA

Electrostatic test: contact discharge 8KV/air discharge 15KV

Communication interface: UART

Communication baud rate: 19200 bps

working environment:

Temperature: -20°C~70°C

Humidity: 40%RH~85%RH (no frost)

Storage environment:

Temperature: -40°C~85°C

Humidity: <85%RH (no frost)

Applications:

Fingerprint lock, fingerprint safe, fingerprint access control, fingerprint attendance, etc.

Package includes:

1 x Capacitive Fingerprint Recognition Module

PK Items	UART Fingerprint Reader Product ID: 1712496	Capacitive Fingerprint Reader Product ID: 1712479	UART Fingerprint Sensor (C) (This time)	UART Fingerprint Sensor (R) Product ID: 1712291
Sensor type	Optical fingerprint module	Capacitive fingerprint module
Advantage	Low cost, long life, strong anti-static ability		Small size and low power consumption
		Mining area is small, high accuracy, good collection and identification effect
Disadvantages	Large size, low accuracy, affected by light	High environmental requirements (temperature, humidity, dust, air alkalinity)
Features	Square split		Round integrated	Square integrated
Fingerprint capacity	4000	3000	500	3000
Image pixel array	248?296	192?192
Communication Interface	UART	UART,USB	UART
Recognition rate	<0.001%	0.00%	<0.001%
Rejection rate	<0.1%	0.01%	<0.1%
Sensor life	10 year	About 200,000 times	About 1 million times
Conditions of Use	Wet fingers become more sensitive	The drier the finger, the more sensitive
Product Positioning	Frequent use, such as access control punch card machine	High requirements for recognition accuracy, such as fingerprint lock
	The general optical fingerprint module is mainly used for low-end products, and the capacitive fingerprint module is mostly used for high-end products.
