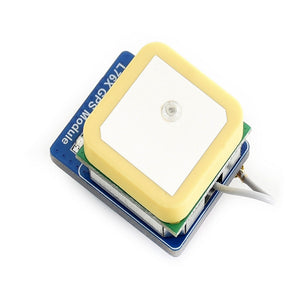

Waveshare L76X Positioning Module GNSS / GPS / BDS / QZSS Serial Communication Module Wireless Module for Raspberry Pi

Tax included.

Size Conversion

Inches

Centimeters

Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.

GNSS parameters:

Signal frequency band: GPS L1(1575.42mhz), BD2 B1 (1561.098mhz)

Number of channels: 33 tracking channels, 99 capture channels and 210 PRN channels

C/A code

SBA: WAAS, EGNOS, MSAS, GAGAN

Horizontal positioning accuracy:

Autonomous positioning: <2.5mCEP

First positioning time @ -130dbm (EASY??function enabled) :

Cold start: <15s

Warm start: <5s

Hot start: <1s

Sensitivity:

Capture: - 148 DBM

Tracking: - 163 DBM

Recapture: -160dbm

Dynamic performance:

Altitude (Max) : 18000m

Speed (Max) : 515m/s

Acceleration (Max) : 4G

Other parameters:

Communication interface: UART

Serial port baud rate: 4800~115200bps (default: 9600bps)

Update rate: 1Hz (default), 10Hz (Max)

Communication protocol: NMEA 0183, PMTK

Power supply voltage: 5V / 3.3v

Operating current: 11mA

Operating temperature: -40??~ 85??/span>

Product size: 32.5mm x 25.5mm
??br>??/span>Device description:
??/p>

1. L76B module

2. Rt9193-33 power chip

3.Rechargeable MS621FE trim battery, used for power down to save data and hot start

4.Active ceramic antenna

5. GPS status indicator

6. Power indicator

Introduction to interface:
