XXD 2212 Motor+ZTW Beatles AL30A Brushless ESC+Propellers Set
Tax included.
XXD 2212 Motor+ZTW Beatles AL30A Brushless ESC+Propellers Set
Motor Specification:
Brand: XXD
Item NO.: XXD A2212
KV:KV1400 , KV2200(optional)
Dimensions: 27.8 x 27mm
Shaft diameter: 3.17mm
Battery: 2-3 cells lithium battery
Efficiency: 80%
Current: 4-10A (efficiency >75%)
No-load Current: 10V/0.4A
Max. Instantaneous Current: 12A/60S
Propeller: 2200KV with 6035 CW propellers,1400KV with 8060 CW propellers,930KV and 1000KV with 1045 CW & CCW propeller.
ESC Specifications:
Brand:ZTW
Item Name: new version Beatles AL series 30A

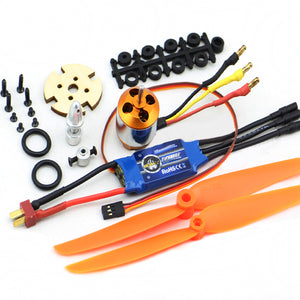

Package Included:
1 x XXD 2212 Brushless Motor (with 3.5mm banana plug,needs be welded by yourself )
1 x ZTW AL30A Brushless ESC (with 3.5mm banana plug,needs be welded by yourself )
2 x Propeller (decided by the motor KV value)
1x Accessories (as the picture shows)
Motor Specification:
Brand: XXD
Item NO.: XXD A2212
KV:KV1400 , KV2200(optional)
Dimensions: 27.8 x 27mm
Shaft diameter: 3.17mm
Battery: 2-3 cells lithium battery
Efficiency: 80%
Current: 4-10A (efficiency >75%)
No-load Current: 10V/0.4A
Max. Instantaneous Current: 12A/60S
Propeller: 2200KV with 6035 CW propellers,1400KV with 8060 CW propellers,930KV and 1000KV with 1045 CW & CCW propeller.
ESC Specifications:
Brand:ZTW
Item Name: new version Beatles AL series 30A
Weight: 27g
Dimensions: 52 x 24 x 8mm
Power input: 2-3 cells Li-Poly
BEC: 2A
Constant current: 30A
Feature:
Extremely low internal resistance
Super smooth and accurate throttle linearity
Safety thermal over-load protection
Supports high RPM motors
Power arming protection prevents the motor from accidentally running when switched ON
New Advanced programming software
Auto shut down when signal is lost
Package Included:
1 x XXD 2212 Brushless Motor (with 3.5mm banana plug,needs be welded by yourself )
1 x ZTW AL30A Brushless ESC (with 3.5mm banana plug,needs be welded by yourself )
2 x Propeller (decided by the motor KV value)
1x Accessories (as the picture shows)
