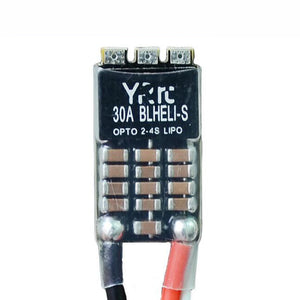

YRRC 30A 2-4S Blheli_S DSHOT600 OPTO Brushless ESC for RC Drone FPV Racing
Tax included.
Specification:
Brand name: YRRC
Item name: 30A Brushless ESC
Input Voltage: 2-4S
Con.Current:30A
Peak Current(10s):40A
BEC:NO
Programming :YES
PCB+ power cord length: 12CM
PCB+ signal line length: 16CM
Size: 13*25*5.4MM
Weight: 5.4g
Feature:
Support DSHOT150/300/600/ONESHOT
The circuit with 12 ESR capacitors can effectively reduce the interference to the picture transmission equipment and improve the stability of the system.
Note: If BF CF software use the DSHT600 protocol, you don't need to do the throttle stroke. You only need to test the motor to turn.
Package Included:
1 x 30A 2-4S Bheli_S Brushless ESC
