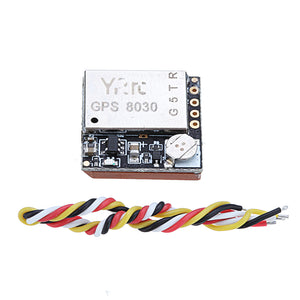

YRRC Mini GPS8030 GPS GLONASS BEIDOU GALILEO SBAS QZSS Module UART TTL
Tax included.
Specification:
Brand: YRRC
Item Name: Mini GPS8030
Size:19*19*5mm
Weight: 4.59g
Positional accuracy: 50 centimeter precision when working with concurrent GNSS
Velocity precision: 0.1m/s
Max height: 50000m
Max speed: 515m/s
Max acceleration: 4G
Max update rate: up to 10Hz
Sensitivity:
Model: M8030-KT
Frequency: GPS L1,GLONASS L1,BEIDOU B1,GALILEO E1,SBAS L1,QZSS L1
Working mode: GPS,GLONASS,BEIDOU,GALILEO,SBAS,QZSS
Tracking & Nav.: -167dBm, Reacquisition: -163dBm,
Cold start: -151dBm, Hot start: -159dBm
Time to first fix: Cold start: 26s, Hot start: 1s
Precision: 1m
Connect ports:
Power supply: voltage 3V-5VDC+-5%, current 40mA
Ports:
A. GPS UART interface
baud rate:4800bps-921600bps(9600bps)
The output: TTL
Top configuration:
GPS decoder chip: UBX-M8030K
Package Included:
1 X GPS Module
